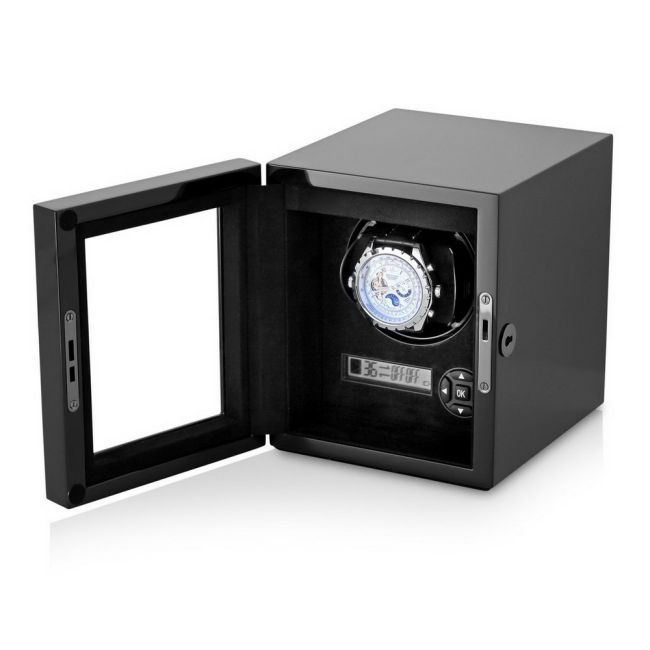

H1 Single watch winder (Black)
- STUNNING APPEARANCE: Black high-gloss finish looks great on a desk or dresser.
- FITS MOST WATCHES: Spring-loaded telescopic holder fit all watch bracelet and strap sizes. Can be used for both men’s and women’s watches.
- MAXIMUM COMPATIBILITY: 78 available winding programs provide compatibility for all watch models.
- LED BACKLIGHT: The watch winder has built-in LED light. The watches look especially beautiful in the dark.
- HIGH PRECISION WINDING: An electronic controller counts every turn of the watch to maintain supreme winding precision.
- PERFECT PRESENTATION: The watch comes to rest at the 12 o'clock position after each winding cycle. This gives your watch an elegant appearance.
- SUPERB USABILITY: SPEED-WINDING mode allows full winding of а previously stopped watches. If NIGHT mode is activated, the winder stops operating for 12 hours and will not disturb you during the night.
Availability: Out of stock
Single watch winder with LCD didplsy and LED interior backlight by Paul Design.
Outer finish: Multi-layer high-gloss lacquer
Interior lining: Velvet
Maximum watch diameter: 2.6 inches;
Original gift box included
Power adapter included.
- Telescopic watch holder;
- LCD display;
- 78 winder programs;
- 3 winding directions;
- Speed-winding option;
- LED interior backlight;
- Electronic rotations counter;
- Night mode (daytime winding option);
- 12 o'clock rotor stop position;
Product dimensions (W x L x H): 18 cm (7.1") x 14 cm (5.5") x 17 cm (6.7")
Product weight: 1.65 kg (3.6 lbs)
What is an automatic watch winder?
A watch winder is a device with an electrical motor which will automatically wind your watch when you are not wearing it. Automatic watches have a limited power reserve, so if you stop wearing them and winding them up, they will run down in two or three days. The reserve depends on the watch brand and on movement (caliber) used.
When your timepiece stops, you must reset time and wind up your watch. If it has additional functions (like date, moon-phase display, perpetual calendar), resetting them may take a lot of time and require certain skills. With an automatic watch winder, you can keep your timepiece wound and ready to go!
Please note: If your watch doesn't wind itself from wrist motion, it cannot be wound by an automatic watch winder. Watch winders are not compatible with Seiko Kinetic Watches because the watch mechanism is not the same as in traditional automatic movement watches.
Please note: Watch winding mode (winding direction and TPD setting) depends on your watch model. Check your watch owner's manual or contact your watch brand customer service for detailed information.
You can also refer to our watch winding parameters table.
QUICK START GUIDE
The AC adaptor is packed separately with the product or is located in the storage drawer. After you plug it in, turn the device on with the button on the rear panel.
The watch winder is equipped with rotor position sensors. Each rotor stops at 12 o’clock position for a better watch display. When plug-in the power cable the first time, the rotors will start moving to initialize the sensors.
1. The rotary speed of watch winder is approximately 9 to 10 rotations per minute. The rotations number is controlled by an electronic counter.
2. "SLEEP" mode: If "Sleep mode" is activated, the winder works for 12 hours and then rests for 12 hours. The number of rotations is automatically doubled to provide the same number of rotations to the watches.
3. "SPEED-WINDING" mode: conduct speed winding of the watches that have stopped. The rotation is set at 480 turns in both directions (240 turns for clockwise, 240 turns for counterclockwise). After speed-winding is activated each time, it will return the programmed setup after 480 turns are completed.
4. Program adjustment(s): watch winder can be set with "RPH" (rotations per hour), rated from 22 to 76 revolutions per hour. Under "sleep mode", the number of rotations is automatically doubled during 12 hours working period. If your watch specification shows the required winding cycle in TPD (turns per day), you can convert it to RPH dividing by 24. For example: 1200 TPD / 24 = 50 RPH. (1200 turns per day divided by 24 hours is equal to 50 rotations per hour).
5. Watch winding mode (winding direction and Rotations-Per-Day setting) depends on watch model. Check the user manual or contact watch brand customer service for detailed information.
6. Press any button to turn the winder ON. Press "OK" for 5 seconds to turn the winder OFF.
7. Press "OK" shortly to pause for 5 minutes. If the rotor was moving, it will stop in 12 o’clock position. Please wait, until the rotor comes to a complete stop. It might take up to 8 seconds. The watch holders can be placed or removed only when rotors are stopped.
This prevents breakdown of the winding mechanism when you fix a watch holder onto a rotor or take it out.
8. The interior backlight is activated by the switch on the rear panel.
1. START / STOP: Displays ► during operation, ◼ during stoppages, ▷ during pause.
2. R.P.H.: Displays number of Rotations Per Hour from 22 to 76, increasing or decreasing in even numbers.
3. DIRECTION: Clockwise winding, counterclockwise winding or mixed mode (clockwise + counterclockwise winding).
4. SLEEP: Displays "OFF", or 1 to 12.
OFF is displayed if the "Sleep mode" is not activated. The numbers represent a delay (in hours) before the winder enters "Sleep mode" for a 12 hours period.
5. SPEED WINDING: OFF or ON.
The display fluorescence will disappear in 2 minutes after the last operation or input is completed. Pressing any button will reactivate the display fluorescence.
1. Connect the power supply. The default setting is 36 RPH (rotations per hour), both directions.
2. SET UP: Press ► or ◄ buttons to change setting target horizontally (when it moves, the setting target will flash)
3. Confirm selected target. Press OK button to confirm your selection. The selected target's flashing frequency will turn slow.
4. Adjust the settings pressing ▲ or ▼ buttons.
5. Press and hold OK button for 3 seconds to save the setting. The setting target will stop flashing.
6. Repeat the above mentioned steps to set other parameters.
7. After you set-up all winder rotors, activate watch winder. Choose START in the START/STOP option. Display ◼ turns into ►.
BODA Concept has appeared in the watch winder market relatively recently as a subsidiary and more cost-saving division of PAUL DESIGN. The company’s concept is to combine the luxury and advanced technologies with the ease of use and low price. Thanks to the successful combination of price and quality, BODA CONCEPT winders have immediately become one of the market leaders.
All boxes have exterior natural wood finish and are covered with gloss varnish from the outside. Each device has internal light and convenient electronic control panel with touchscreen.
Produced in modifications to wind up 2, 3 and 4 watches. Available colors: carbon fiber, Macassar and dark burl. There is USB output on the back side of the device.
Has classical design. It has an additional box to store watches, cuff-links, documents or jewelry. Available in carbon fiber, Macassar and walnut. Suitable to wind up 6 watches.
Produced in modifications to wind up 1, 2, 3 and 4 watches. Available colors: carbon fiber, Macassar and walnut. Glass door with metallic inserts and additional box to store watches and jewelry. There is USB output on the back side.
Intended for owners of large collections. Consists of models suitable to wind up 9 and 12 watches. Winders of D series are available in the following colors: carbon fiber, Macassar, walnut, black, white and dark burl.
All devices of these series has a box to store watches or jewelry.
Package device to wind up one watch. Available in following colors: carbon fiber, Macassar, walnut, black, white and dark burl. The devices are equipped with rechargeable battery and, thus, may operate without connecting to electrical network for a long time. If you have highly-valued models of watch, you may put E series winder to the safe to protect your watch and make sure that their mechanism is always operational.
Produced in modifications to wind up 2, 3 and 4 watches. Available colors: carbon fiber, Macassar, dark burl and walnut. There are additional pillows to store 3, 5 or 6 quartz watches under the upper lid.
Watch Winder Store is an exclusive distributor of Boda Concept products in the USA.
|Maximum watch diameter (inch)||2.6|
|Watch winding slots||1|
|Watch holder type||Telescopic|
|Watches on rotor||1|
|Item length (inch)||5.5|
|Item width (inch)||7.1|
|Item height (inch)||6.7|
